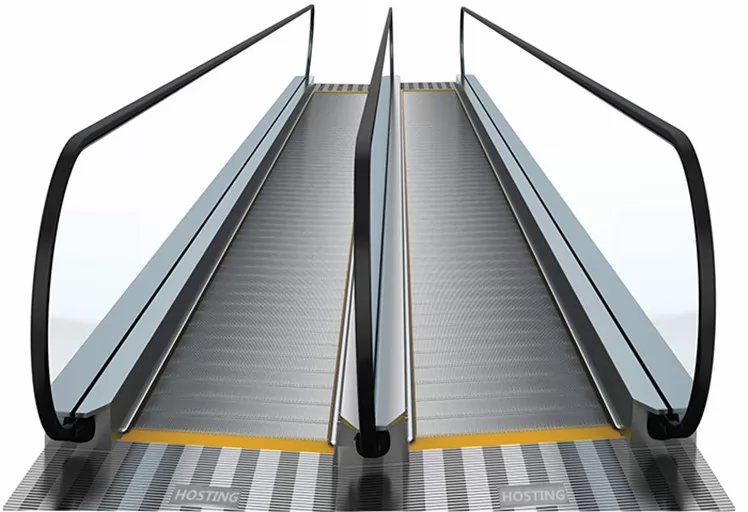

FUJI is a professional manufacturer and suppliers that is concerned with the design, development and production of moving walk and travelator .
Explanation
1. When the moving walk is installed up to second floor, cancel pit, civil substructure and the upper symmetrical, pit should be waterproof by customer.
2. Moving walkway entrance should have sufficient flow area, depth dimension from the front end to the steering handrail obstacle should be not less than 2500mm.
3. users to provide a ground resistance which is less than 4Ω. Current power wiring should be three-phase five-wire system by customer.
4. Truss decoration on three sides by customers, decorated weight should less then 30Kg / m2.
5. All dimensions in mm, subject to change without notice.
6. When step is aluminum material, please ask for civil size from us
7. The figure “S” represents floor beam thickness.
8. Supporting force is approximate; all dimensions in millimeters (mm); all
loads
Units are KN; Will be without notice if change.
| Support | ||
| Without center support support（KN) | Single center support（KN） | Double center support （KN) |
| Ru=L*q+M | Ru=L*q+M | Ru=L*q+M |
| Rd=L*q+N | Rd=L*q+N | |
| Rd=L*q+N | S1=(La+Lb)*q*1.3 | S1=(La+Lb)*q*1.3 |
| S2=(La+Lb)*q*1.3 | ||
| Tiltangle | Rise | La | Lb | Lc | |||
| from | to | S1 | S2 | ||||
| 10° | 1273 | 2154 | – | – | – | – | – |
| 2155 | 3388 | 1 | – | 7000 | L-7000 | – | |
| 3389 | 4799 | 1 | – | L-15000 | 15000 | – | |
| 4800 | 6000 | 1 | 1 | 7000 | 15000 | L-2200 | |
| 11° | 1423 | 2394 | – | – | – | – | – |
| 2395 | 3754 | 1 | – | 7000 | L-7000 | – | |
| 3755 | 5309 | 1 | – | L-15000 | 15000 | – | |
| 5310 | 6000 | 1 | 1 | 7000 | 15000 | L-2200 | |
| 12° | 1572 | 2634 | – | – | – | – | – |
| 2635 | 4122 | 1 | – | 7000 | L-7000 | – | |
| 4123 | 5822 | 1 | – | L-15000 | 15000 | – | |
| 5823 | 6000 | 1 | 1 | 7000 | 15000 | L-2200 | |
| Supported by force | q | M | N |
| RM L800 | 0.0039 | 9.5 | 4.5 |
| RM L1000 | 0.0045 | 11 | 5 |
| RM L800 | 800 | 1038 | 1460 | 3260 |
| RM L1000 | 1000 | 1238 | 1660 | 3660 |
| Step width mm | A | B | C | D |
1. One year warranty for two whole steps.
2. The warranty period of moving walk spare parts sold by our company is one year.
3. during the maintenance period of fuji moving walk, my company provide 24-hour repair service, 30 minutes arrived on the scene, will provide you fully show my Fuji elevator people “quick to the scene, troubleshooting, elevator recovery, services, and in a timely manner” strong advantage.
4. Daily maintenance steps:
● Cleaning and refueling of the travelator host.
(1) motor overhaul and maintenance.
(2) reducing tank cleaning and changing oil.
● Cleaning and tuning of cascade chain, driving chain and wheel.
● Check and adjust the handrail.
It is not greater than 0– +2% for the moving walk handrail and step speed, and the safety switch at the entrance is valid.
● Maintenance of automatic fuel injection device.
To achieve the reliable action, each nozzle position is correct, each part lubrication good.
● Moving walk step maintenance and adjustment.
● Maintenance and adjustment of electrical and safety protection devices.
(1) insulation resistance: dynamic safety device circuit acuity 0.5 M Ω; Acuity 0.25 M Ω other circuits.
(2) the position of each safety protection switch is correct and the action is flexible and reliable.
● moving walk adjustment test run.
If you are interested in any of our moving walk or would like to discuss a custom order, please feel free to contact us.
